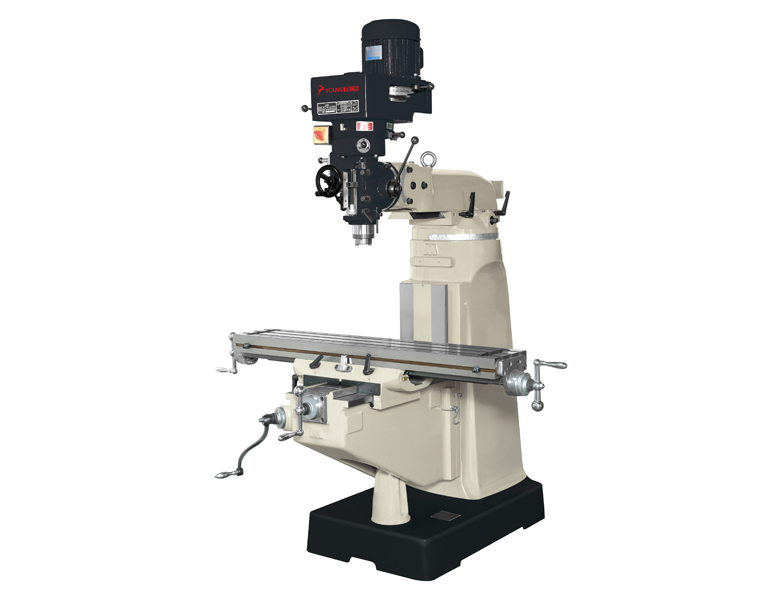

Specification:
- Meehanite casting
- Saddle and table are hardened and ground.
- Turcite-B on X, Y slideways
- Htd (japan) belt use
- Electric sparts: Schneider, keyon
- Taiwan wiring
- Draw bar
- Chip cover
- Manual lube
- Leadscrew
- Forward switch
- Jig work and mold applications
- Head titling R/L 90,F/B 45
| Specification | YM-2M S | YM-M112 S | YM-A2 V | YM-A112 V | YM-HM3 S | YM-HA3 V | YM-M3 S | YM-M113 S |
|---|---|---|---|---|---|---|---|---|
| Type | Step | Step | Variable | Variable | Step | Variable | Step | Step |
| X travel | Manual 760mm / Auto 680mm | Manual 910mm / Auto 840mm | ||||||
| Y travel | 305mm | 305mm | 305mm | 305mm | 406mm | 406mm | 406mm | 406mm |
| Z travel | 405mm | 405mm | 405mm | 405mm | 430mm | 430mm | 406mm | 406mm |
| Slideways | X Y Z dove | X Z dove/Y box | X Y Z dove | X Z dove/Y box | X Z dove/Y box | X Z dove/Y box | X Y Z dove | X Z dove/Y box |
| Table size (mm) | 1070x230 | 1070x230 | 1070x230 | 1070x230 | 1245x230 | 1245x230 | 1270x254 | 1270x254 |
| T slot | 16x3x63mm | 16x3x63mm | 16x3x63mm | 16x3x63mm | 16x3x63mm | 16x3x63mm | 16x3x63mm | 16x3x63mm |
| Table loading | 300kg | 300kg | 300kg | 300kg | 350kgs | 350kgs | 350kgs | 350kgs |
| Head titling | R and L 90°/F and B 45° | R and L 90°/F and B 45° | R and L 90°/F and B 45° | |||||
| Quill diameter | 85.75mm | 85.75mm | 85.75mm | 85.75mm | 85.75mm | 85.75mm | 85.75mm | 85.75mm |
| Spindle motor | 2hp | 2hp | 3hp | 3hp | 3hp | 3hp | 3hp | 3hp |
| Spindle speed | 8 step / 16step | 8 step / 16step | Var60-4200rpm | Var60-4200rpm | 8 step / 16step | Var60-4200rpm | 8 step / 16step | 8 step / 16step |
| Spindle taper | R8 or NT30 | R8 or NT30 | R8 or NT30 | R8 or NT30 | R8 or NT30 | R8 or NT30 | R8 or NT30 | R8 or NT30 |
| Spindle to table | 53-463mm | 53-463mm | 57-463mm | 57-463mm | 40-446mm | 40-446mm | 40-446mm | 40-446mm |
| Quill travel | 127mm | 127mm | 127mm | 127mm | 127mm | 127mm | 127mm | 127mm |
| Overarm travel | 300mm | 300mm | 300mm | 300mm | 550mm | 550mm | 550mm | 550mm |
| Over height | 2236mm | 2236mm | 2236mm | 2236mm | 2236mm | 2236mm | 2236mm | 2236mm |
| Over depth | 1623mm | 1623mm | 1623mm | 1623mm | 1702mm | 1702mm | 1702mm | 1702mm |
| Over width | 1480mm | 1480mm | 1480mm | 1480mm | 2616mm | 2616mm | 2616mm | 2616mm |
| Packing | 165x138cm | 165x138cm | 165x138cm | 165x138cm | 180x165cm | 180x165cm | 180x165cm | 180x165cm |
| Net weight | 900kgs | 900kgs | 900kgs | 900kgs | 1200kgs | 1200kgs | 1200kgs | 1200kgs |
| Specification | YM-A3 V | YM-A113 V | YM-M4 S | YM-A4 V | YM-M5 S | YM-A5 V | YM-5000V |
|---|---|---|---|---|---|---|---|
| Type | Variable | Variable | Step | Variable | Step | Variable | Variable |
| X travel | Manual 910mm / Auto 840mm | Manual 780mm / Auto 700mm | Manual 740mm / Auto 600mm | 1200mm | |||
| Y travel | 406mm | 406mm | 430mm | 430mm | 438mm | 438mm | 380mm |
| Z travel | 406mm | 406mm | 460mm | 460mm | 460mm | 460mm | 500mm |
| Slideways | X dove/Y Z box | X Z dove/Y box | X dove/Y Z box | X dove/Y Z box | X dove/Y Z box | ||
| Table size (mm) | 1270x254 | 1270x254 | 1270x254 | 1270x254 | 1270x280 | 1270x280 | 1500x305 |
| T slot | 16x3x63mm | 16x3x63mm | 16x3x63mm | 16x3x63mm | 16x3x71mm | 16x3x71mm | 16x3x71mm |
| Table loading | 350kgs | 350kgs | 350kgs | 350kgs | 400kgs | 400kgs | 450kg |
| Head titling | R and L 90°/F and B 45° | R and L 90°/F and B 45° | R and L 90°/F and B 45° | R and L 90° | |||
| Quill diameter | 85.75mm | 85.75mm | 105mm | 105mm | 105mm | 105mm | 105mm |
| Spindle motor | 3hp | 3hp | 5hp | 5hp | 5hp | 5hp | 5hp |
| Spindle speed | 8 step / 16step | Var60-4200rpm | 10 step | Var60-3600rpm | 10 step | Var60-4200rpm | Var60-3600rpm |
| Spindle taper | R8 or NT30 | R8 or NT30 | NT40 | NT40 | NT40 | NT40 | NT40 |
| Spindle to table | 40-446mm | 40-446mm | 55-505mm | 55-505mm | 70-520mm | 70-520mm | 0-535mm |
| Quill travel | 127mm | 127mm | 150mm | 150mm | 150mm | 150mm | 150mm |
| Overarm travel | 550mm | 550mm | 450mm | 450mm | 430mm | 430mm | 500mm |
| Over height | 2160mm | 2160mm | 2300mm | 2300mm | 2400mm | 2400mm | 2400mm |
| Over depth | 1702mm | 1702mm | 1900mm | 1900mm | 2000mm | 2000mm | 2100mm |
| Over width | 2616mm | 2616mm | 2450mm | 2450mm | 2450mm | 2450mm | 2080mm |
| Packing | 180x165cm | 180x165cm | 225x165cm | 225x165cm | 225x180cm | 225x180cm | 210x208cm |
| Net weight | 1200kgs | 1200kgs | 1500kgs | 1500kgs | 1600kgs | 1600kgs | 2250kgs |

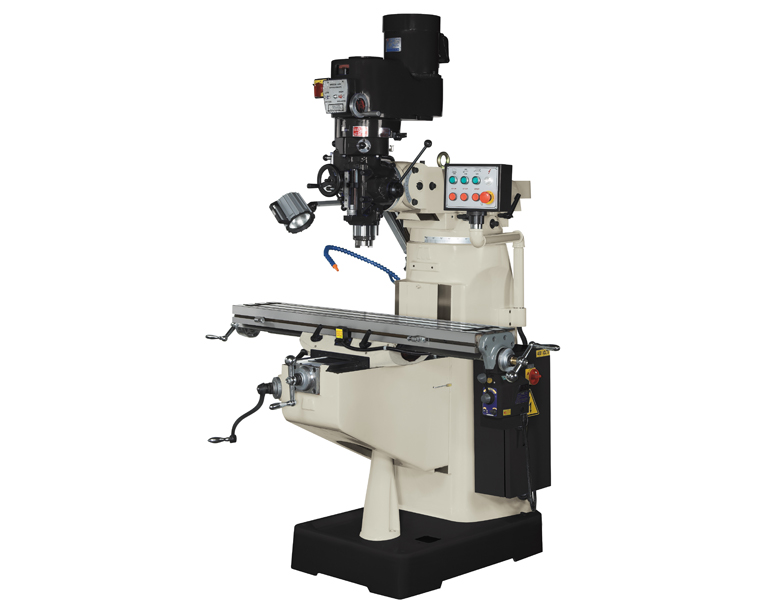

- Coolant system
- Coolant pan
- Power feed for X, Y, Z/Gear type power feed
- Auto lube
- Z axis elevating motor
- CE, CSA wiring
- Change to large table
- Change to ballscrew
- Dro
- Chuck guard
- 30 taper change to false 40
- 5000vs X gear type change to powerfeed
