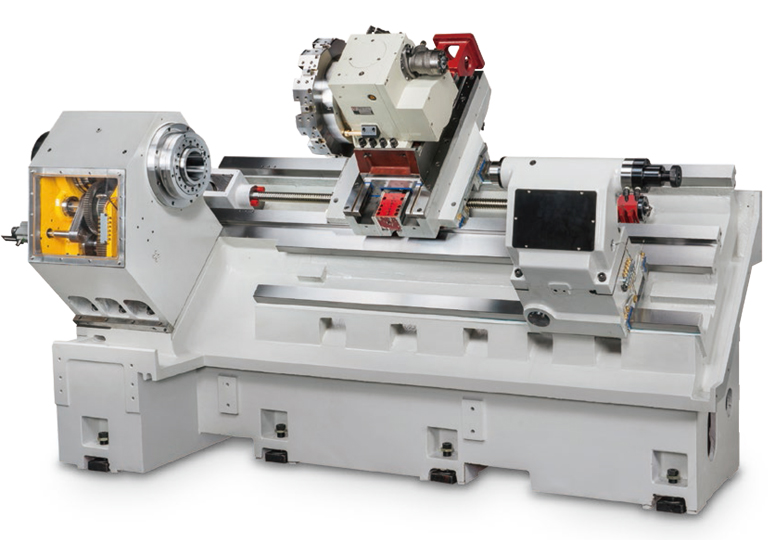

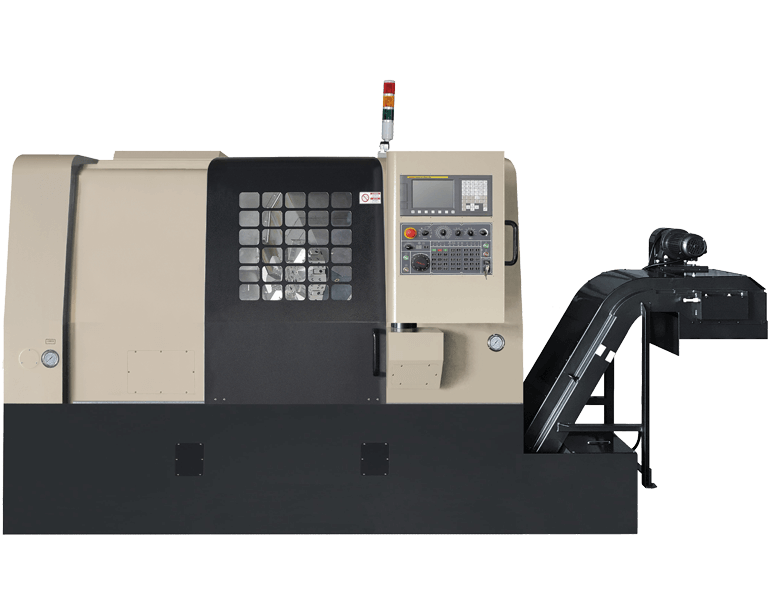

CNC 45 Degrees Slant Bed Lathe

YL-92L12/YL-74L12

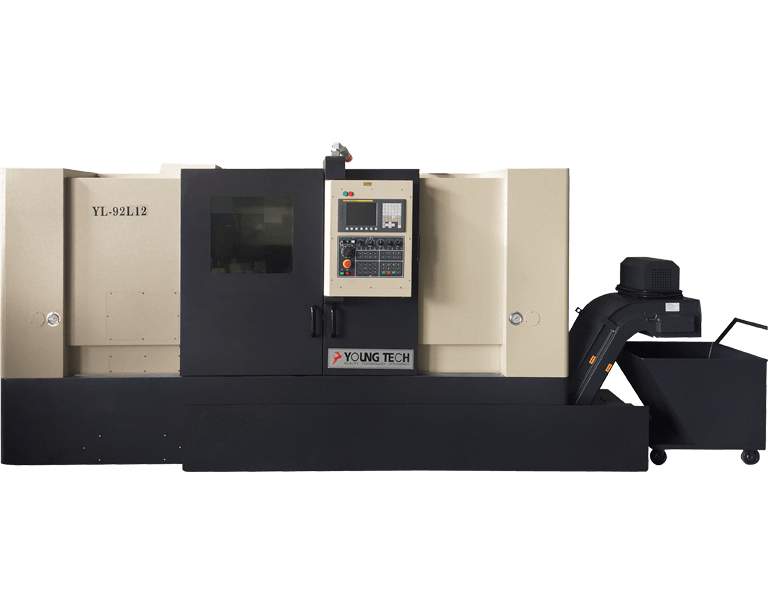

YL-92L12 Box Way With 12” chuck

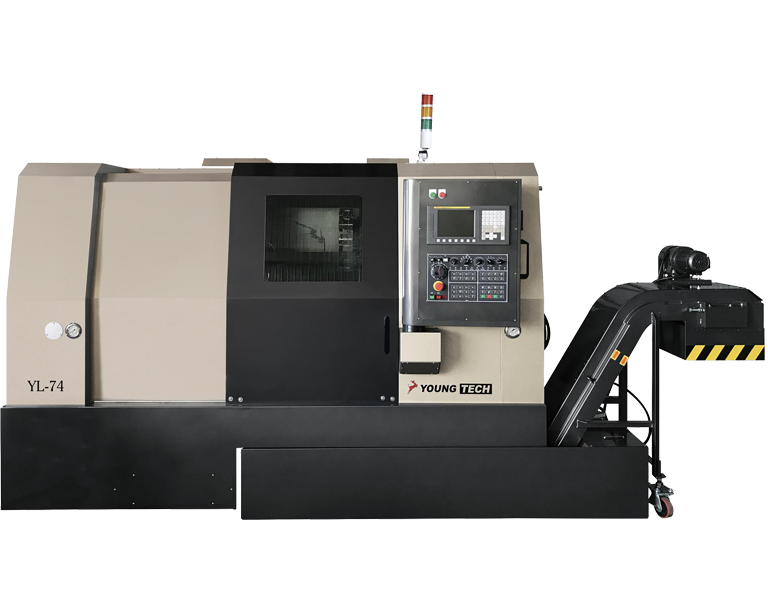

YL-92/YL-74

YL-92 Box Way With 12”chuck

YL-51(L)/YL-65

YL-51(L) Linear & Box Way With 8” chuck

YMC-1060

Linear Guideway

Inquiry E-Catalog

Specification:

Strictly Quality Control

These machine models undergo through a series od rigid laser inspection processes, which includes motion and calibration testing, therefore every model is capable of delivering the best machining performance, promising the optirmal quality to the production line.

  • The back of machine body frame

Thermal Ability

The headstock, saddle and tailstock are all on the same standard plane as the X axis. This design indicates that the heat distribution is uniform which in turn significantly reduces any thermal deformation and ensures accurate repeatability in high production operations.

Superior Structure With High Rigidity

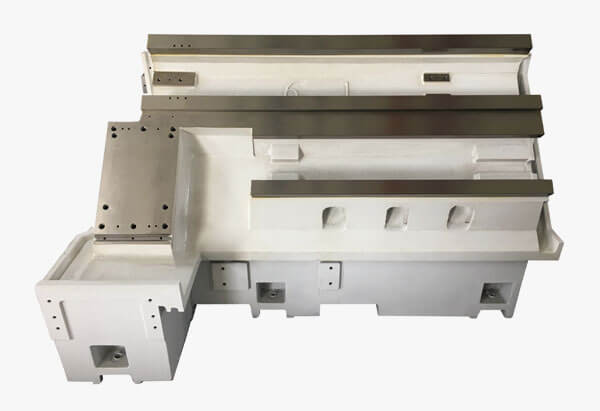

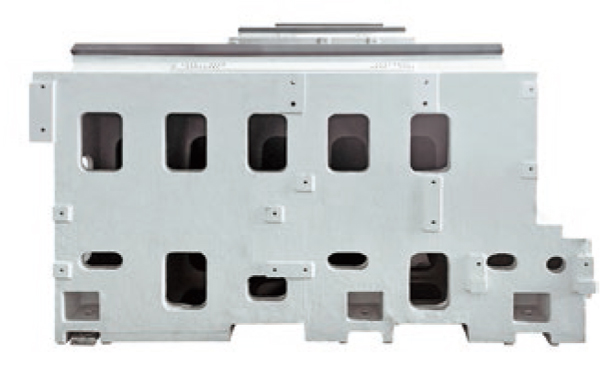

This one-piece Meehanite cast iron 45 degrees bed structure with lower center of gravity, is easy to disposal the chip and ensures machine stability. Heavy Torque design maximizes the rigidity and thermal stability. The superior structure provides the highest machine accuracy and reliability. It has optimum machine stiffness. It can obtain a finest feed rate during heavy cutting process.

BOX WAYS

All boxes ways are precision ground and hardened with all saddles lines with Turcite B and smooth precision movement and high accuracy.

Ball screw

High precision large diameter ball screws are pre-tensioned to compensate for any thermal expansion during machining operation.

Outstanding Features Assure Greater Value

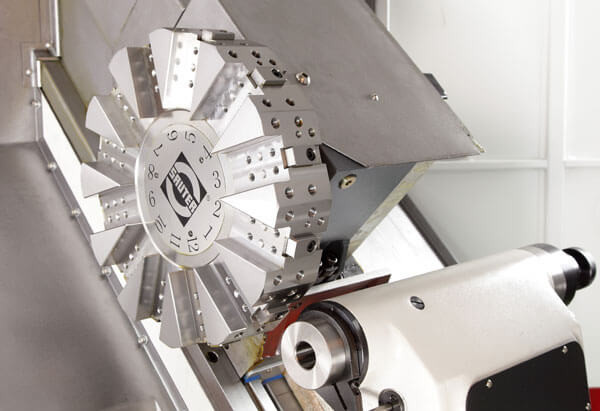

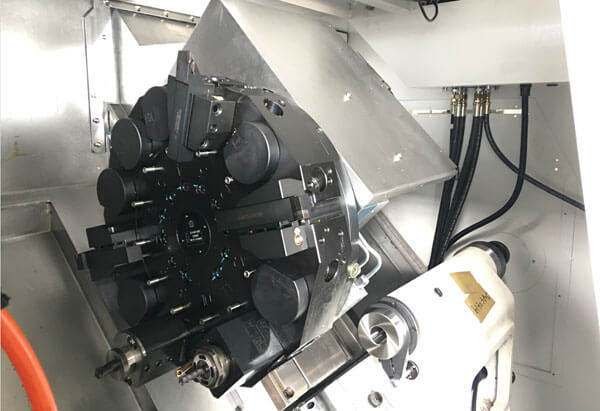

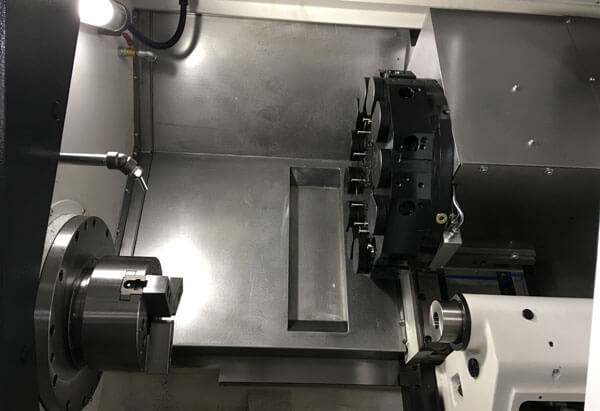

Hydraulic Turret

The 8, 10, 12 positions turret feature is designed with bi-directional tool selection, achieving quick indexing time within 0.9 seconds. The turret accommodates square tools 25x25 mm and ID tools dia. 40 mm.

  • Tooling Optional: Square tools 32x32 mm,ID tools dia. 50 mm
  • Turret Optional: Servo Turret or C axis & Power Turret

Precision Spindle

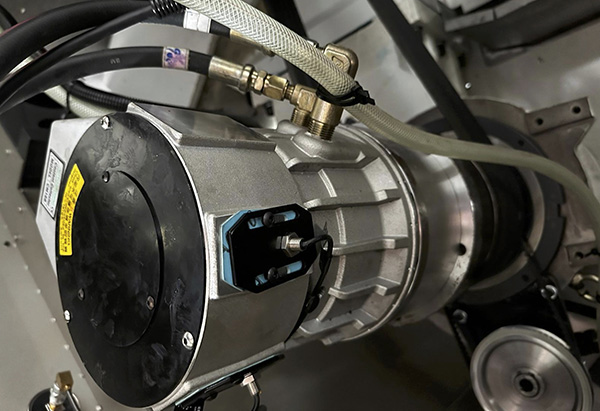

The cartridge type spindle is convenient for replacement during operation. The spindle runs on class P4 Precision bearings providing high axial thrust capacity and supperior radial stability. This ensures high precision during heavy duty turning.

  • Standard: Pulley type spindle
  • Optional: Gear box

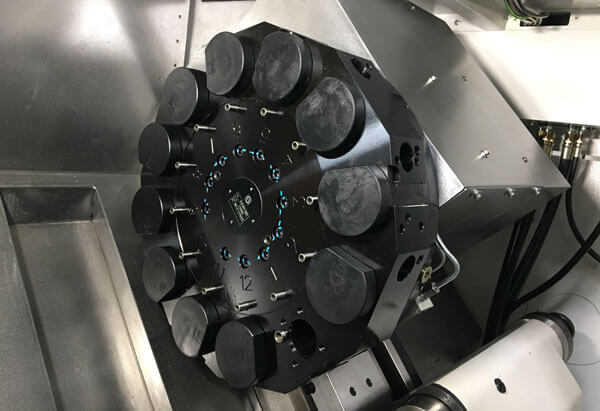

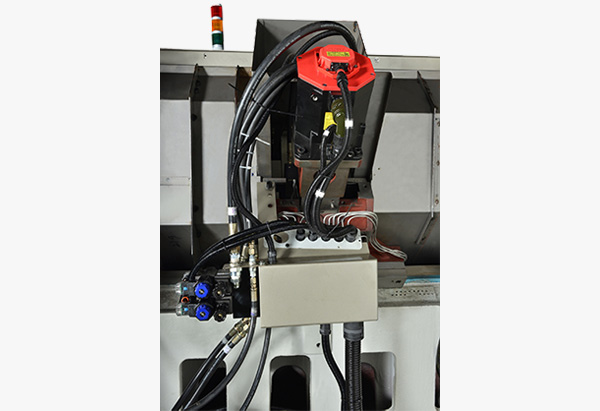

HYDRAULIC TURRET

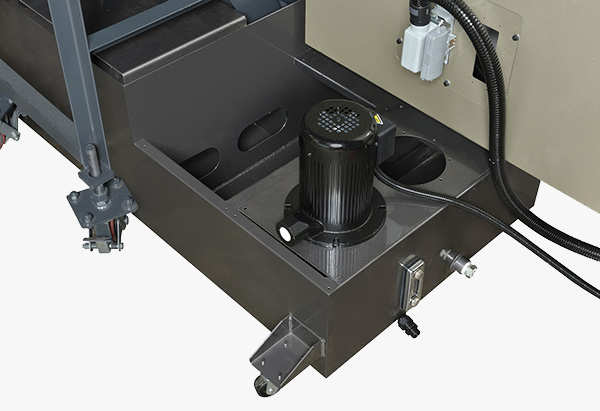

COOLANT SYSTEM

THE 3-JAW HYDRAULIC CHUCK

AUTOMATIC LUBRICATOR

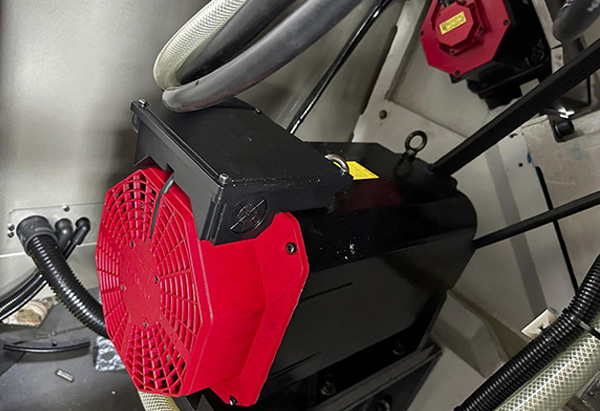

HIGH PRECISION SPINDLE

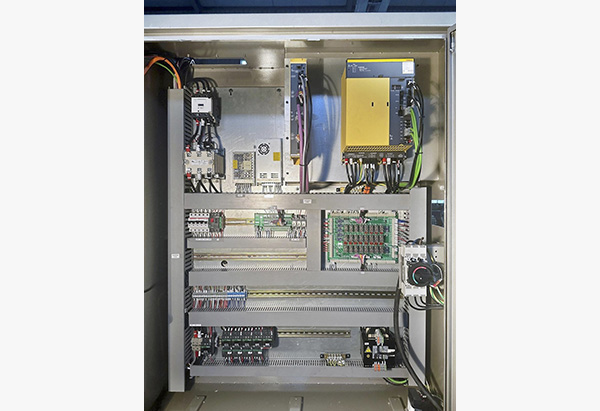

HIGH QUALITY CONTROL COMPONENTS

CNC CONTROL

HYDRAULIC TAILSTOCK

TURRET

TURRET

TURRET

TURRET

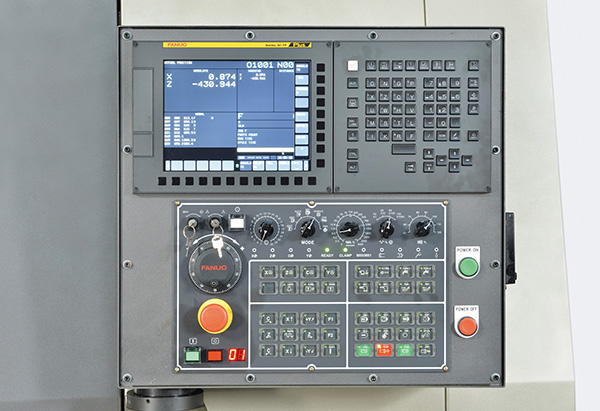

FAUNC CONTROLLER

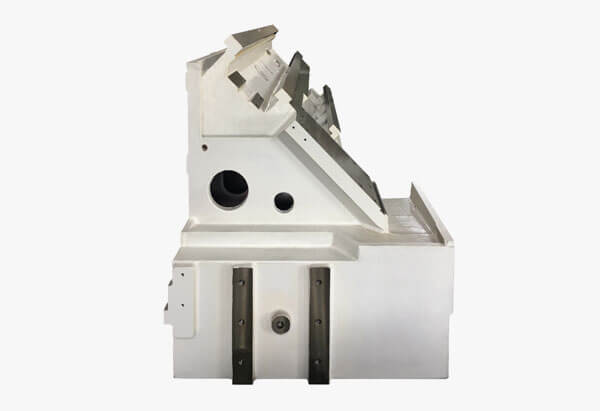

YL-74 & YL-92 SIDE FRAME

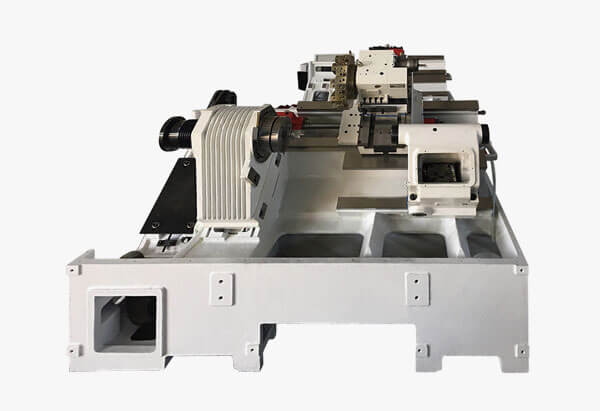

YL-74 & YL-92 MACHINE FRAME

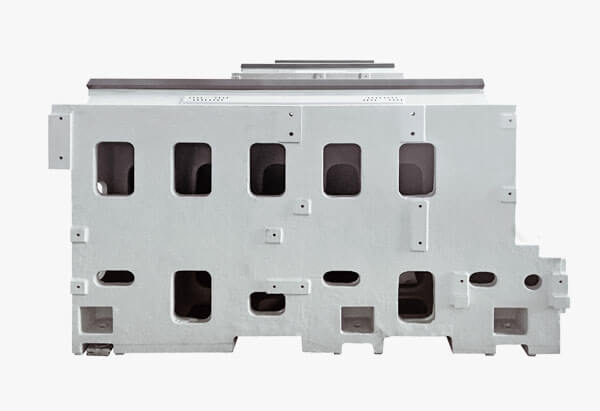

YL-74 & YL-92 BACK OF FRAME

YL-51 MACHINE FRAME

YL-51 / YL-74 / YL-74L12 Specification

YL-92 / YL-92L12 / YL-92L16 / YL-92L20 Specification

ITEM UNITS YL-51(L) YL-65(L) YL-74 YL-74L12
Capacity
Max. swing over Bed mm 500 500 700 700
Max. swing over Cross Slide mm 300 300 450 450
Distance Between Centers mm 485 485 685 1285
Max. Turning Length mm 400 400 600 1200
Max. Turning Diameter mm 300 300 450 450
Max. Bar Diameter mm 51 65 74 74
Spindle
Hyd. Chuck Diameter inch 8" 8" 10" 10"
Spindle Nose Type A2-6 A2-6 A2-8 A2-8
Bearing Type Type NN3020 NN3020 NN3026 NN3026
Spindle Bearing Dia. mm 100 100 140 140
Spindle speed r.p.m. 4200 4200 3000 3000
Turret
Number of Tools 10 10 10 10
Square Tool Shank Size mm 25 25 25 25
Round Tool Shank Sizr mm 40 40 40 40
X-axis
Travel mm 150 + 40 150 + 40 225 + 40 225 + 40
Rapid Traverse Rate m/min 20 20 20 20
Servomotor kw 2.5 2.5 3 3
Z-axis
Travel mm 400 400 600 1200
Rapid Traverse Rate m/min 20 20 20 20
Servomotor kw 2.5 2.5 3 3
Tailstock
Quill Diameter mm ø80 ø80 ø80 ø80
Morse Taper mm MT4 MT4 MT5 MT5
X-axis Slideway Type Box Way / Linear Guide Way Box Way Box Way
Z-axis Slideway Type Box Way / Linear Guide Way Box Way Box Way
Coolant Tank Capacity Liter 120 120 200 200
Hydraulic Pump Moter HP 1 1 2 2
Machine Dimensions
Floor Space cm 195 x 175 x 190 195 x 175 x 190 265 x 175 x 196 300 x 175 x 196
Machine Weight kg 4500 4500 6500 6200
ITEM UNITS YL-92 YL-92L12 YL-92L20
Capacity
Max. swing over Bed mm 700 700 700
Max. swing over Cross Slide mm 450 450 450
Distance Between Centers mm 685 1285 2050
Max. Turning Length mm 600 1200 2000
Max. Turning Diameter mm 450 450 450
Max. Bar Diameter mm 92 92 92
Spindle
Hyd. Chuck Diameter inch 12" 12" 12"
Spindle Nose Type A2-8 A2-8 A2-8
Bearing Type Type NN3028 NN3028 NN3028
Spindle Bearing Dia. mm 140 140 140
Spindle speed r.p.m. 2500 2500 2500
Turret
Number of Tools 12 12 12
Square Tool Shank Size mm 25 25 25
Round Tool Shank Sizr mm 40 40 40
X-axis
Travel mm 225 + 40 225 + 40 225 + 40
Rapid Traverse Rate m/min 20 20 20
Servomotor kw 3 3 3
Z-axis
Travel mm 600 1200 2000
Rapid Traverse Rate m/min 20 20 20
Servomotor kw 3 3 3
Tailstock
Quill Diameter mm ø80 ø80 ø80
Morse Taper mm MT5 MT5 MT5
X-axis Slideway Type Box Way Box Way Box Way
Z-axis Slideway Type Box Way Box Way Box Way
Coolant Tank Capacity Liter 200 200 200
Hydraulic Pump Moter HP 2 2 2
Machine Dimensions
Floor Space cm 265 x 175 x 196 300 x 175 x 196 465 x 177 x 220
Machine Weight kg 5600 6200 7000
  • Leveling bolts and blocks
  • High pressure coolant gun and air gun
  • Fully enclosed splash guard
  • Work lamp

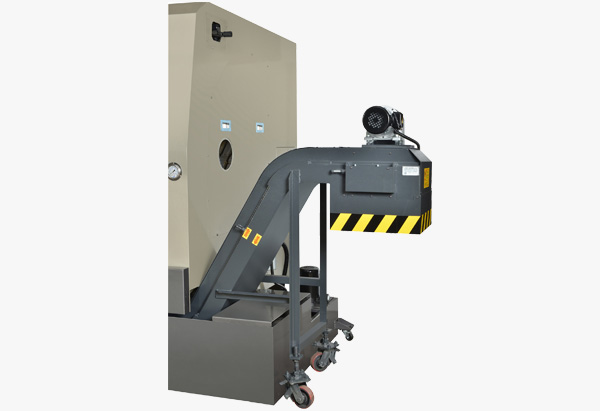

  • Chip conveyor with bucket
  • Overload protector
  • Heat exchanger
  • Chuck open/close confirmation device
  • Programmable tailstock
  • High/low pressure change on tailstock
  • Running condition indication lamp
  • Chuck air blast device
  • Single point orientation on spindle
  • Coolant nozzle on spindle
  • Hydraulic pressure confirmation device
  • Spindle rigid tapping
  • Tool box
  • Oil mist collector
  • Cutting fluid cooling device
  • Wireless edge measuring system
  • Auto length measuring device
  • Oil mist cooling system

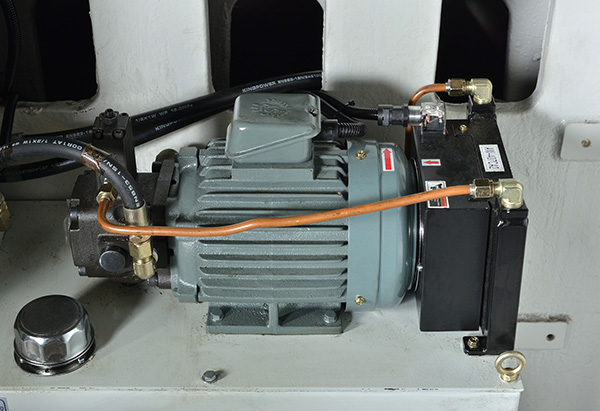

  • Hydraulic power unit cooling system
  • 20 kg. high pressure coolant system
  • Auto door
  • Transformer
  • Stabilizer
  • Bar feeder interface
  • Bar feeder
  • Parts conveyer
  • Two-axis linear scale
  • Parts catcher
  • Chuck high/low pressure change
