CNC Milling Machinine
YT-1000FM, 1300FM, 1500FM
Box ways

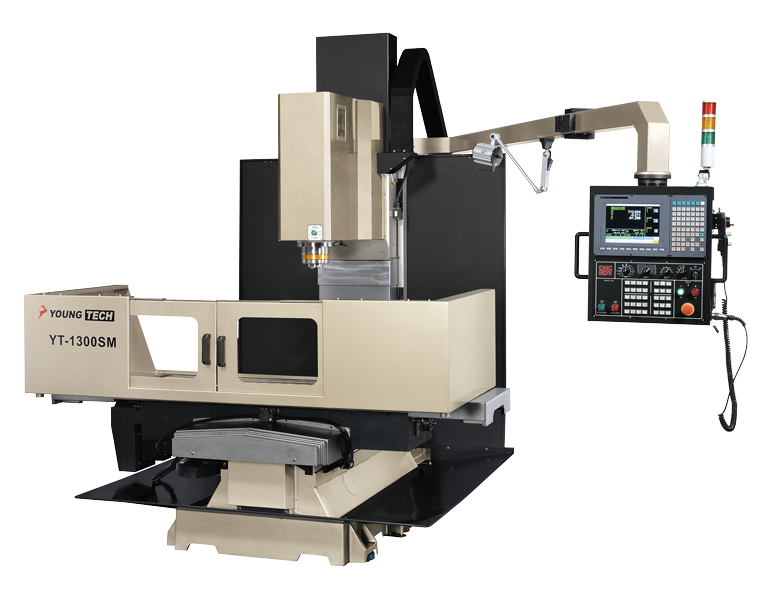

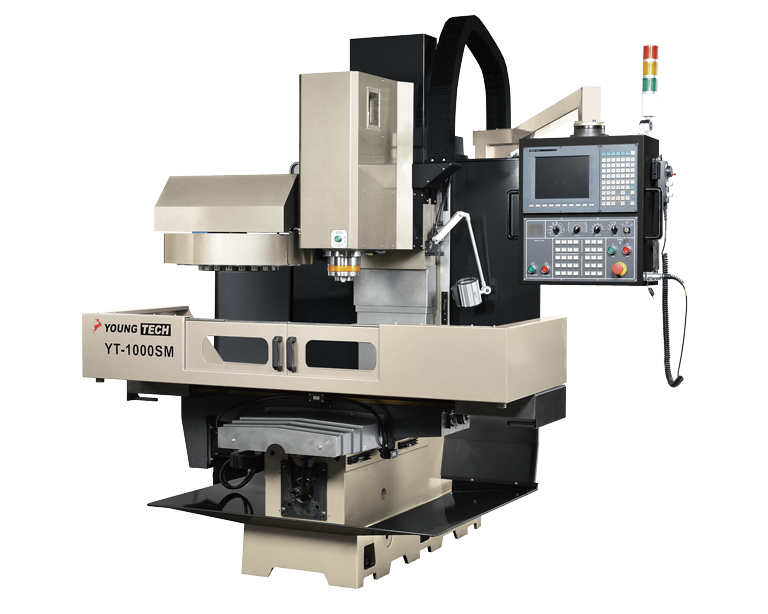

YT-800SM / YT-1300SM / YT-1500SM (Semi-Cover)
Box ways

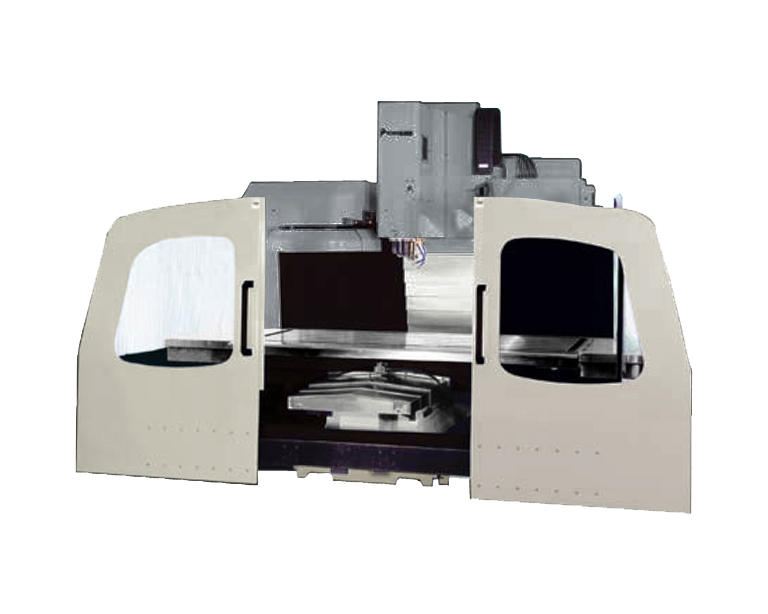

YT-2000SM / YT-2500SM (A Type Semi-Cover)
Box ways
YT-2000SM / YT-2500SM (B Type Semi-Cover)
Box ways
YT-3000SM
Box ways

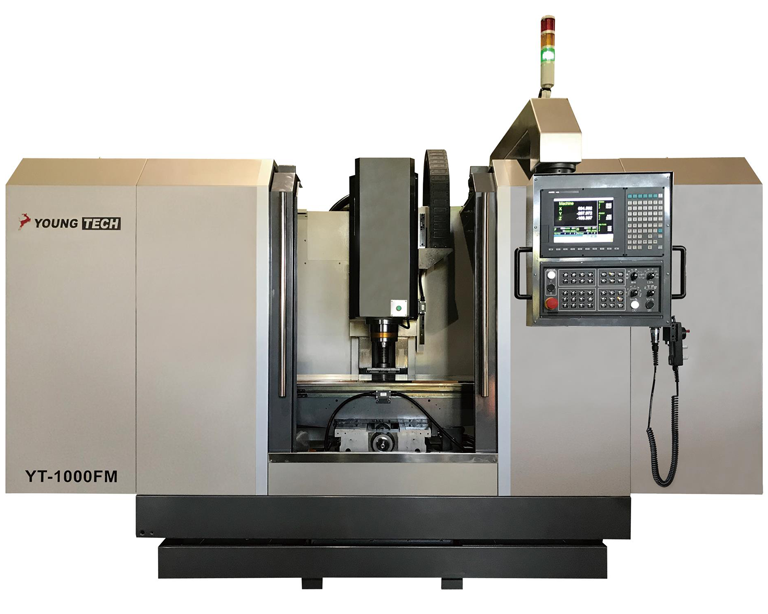

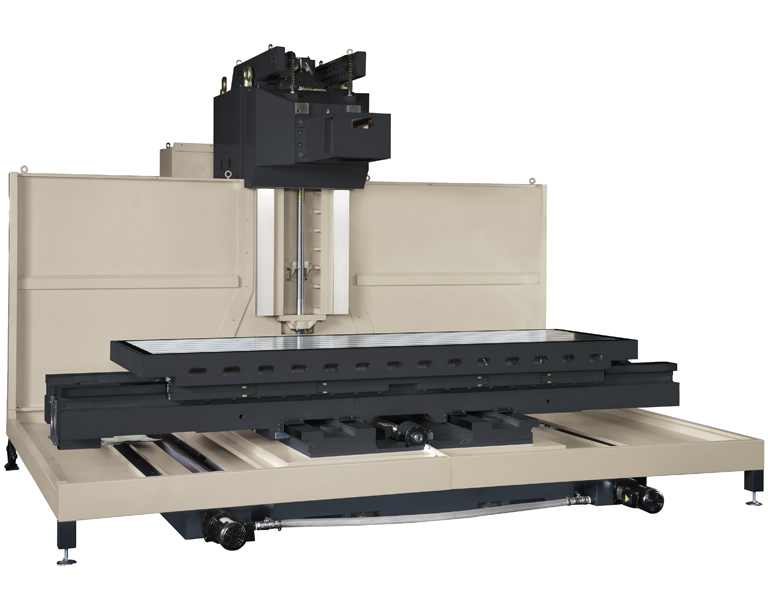

YT-1000FM
Box ways

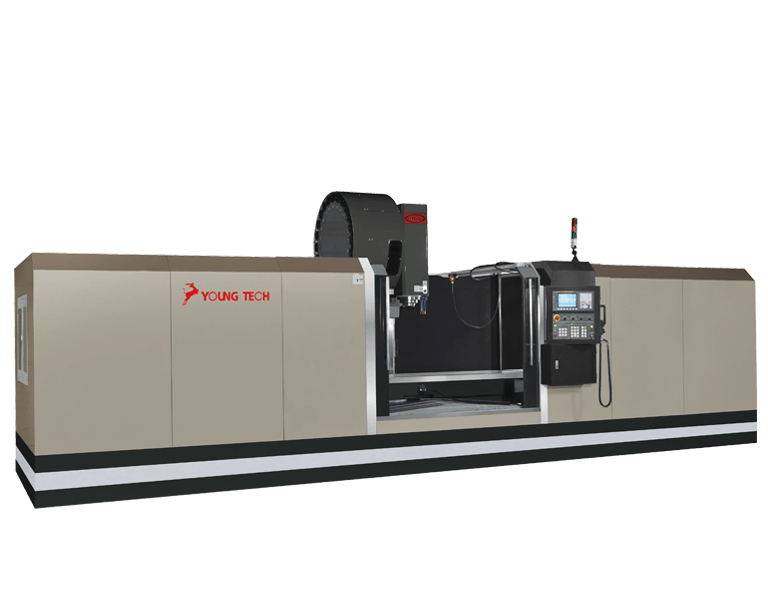

YT-2000 & 2500FM
Box ways

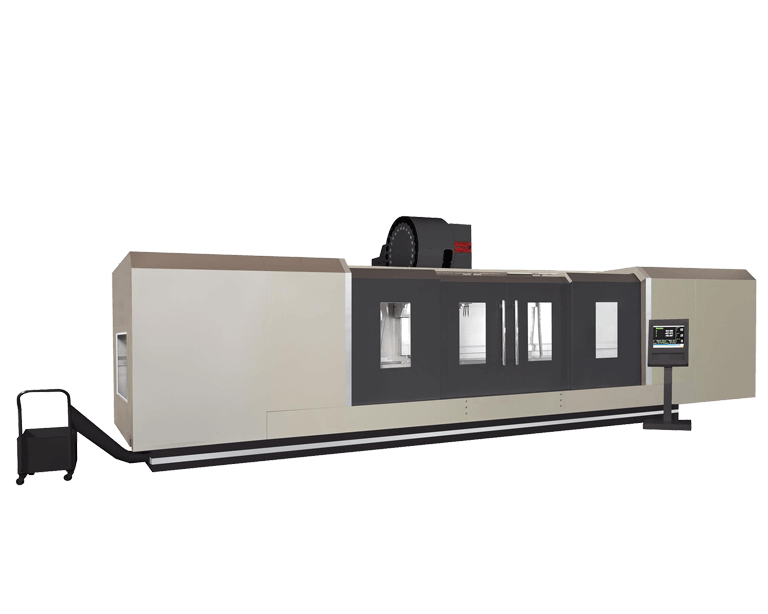

YT-3000 & 4000 FM
Box ways
Specification:
Machine Features
- This machine is constructed with heavy-duty Meehanite cast iron to ensure high rigidity, wear resistance, and no deformation.
- P4-grade precision bearing is adopted for the main spindle.
- The X, Y and Z axes slideways are coated with Turcite-B to assure smoothness and abrasion resistance.
- The X,Y and Z axes adopt high precison double nuts preloaded type ball screws.
- Ball Screw with Automatic Lubrication System, high precision ball screws mouted with double nuts support,ensuring high positioning accuracy and durability. The lubrication system automatically measures and accurately supplies the oil to ball screws and bearings to guarantee a longer service life.
Built With High Rigidity
- Heavily built machine structure ensures maximum operating stability and even load distribution with machining accuracy not affected not by the foundation or leveling variation.
- Finely scraped guide-way surfaces are coated with Turcite-B, which ensures maximum machining accuracy and prolonged service life.
- Counter-balanced Z-axis to achieves highly smooth movement in rapid traverse and normal feed.
- Oil and fluid are recycled separately to have dry and clean area.
- Primary parts are made of Meehanite cast irons, which offer high tensile strength and excellent wear resistance and longer service life.
- Counter-balanced Z-axis to achieves highly smooth movement in rapid traverse and normal feed.
- To eliminate backlash, double nuts ball screws and drive servo motors are utilized on three axes.
- Slideways on 3 axes are box way designed, hardened and ground with precision.
- To eliminate backlash, double nuts ball screws and drive servo motors are utilized on three axes.
- Coolant and chips are kept thoroughly away from slideways for longer machine service life.(optional)
High Precision, High Rigidity Spindle
- The spindle runs on P4 class precise angular contact ball bearing(Front: 4pcs & Rear: 2pcs) made go high quality alloy steel, heat-treated and precision ground for long running time and constant temperature at high speed.
- The spindle is lubricated by special oil and circularly cooled by coolant through spindle motor that generates minimum heat and ensures precision and stability with constant temperature in high-speed machining and heavy-duty cutting.
- The spindle nose combined air blow to prevent coolant or chips from contamination. It also ensures spindle accuracy and its service life.

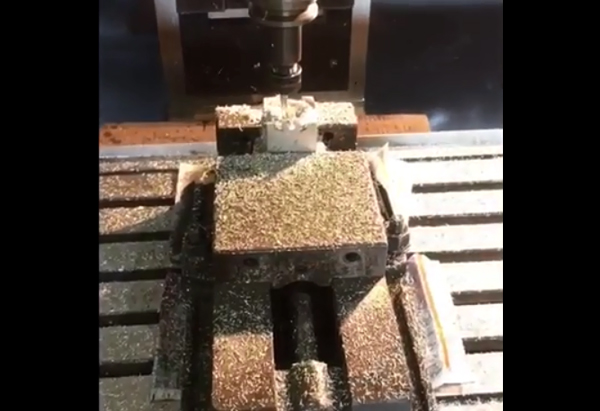

CNC Milling Test Cut Video

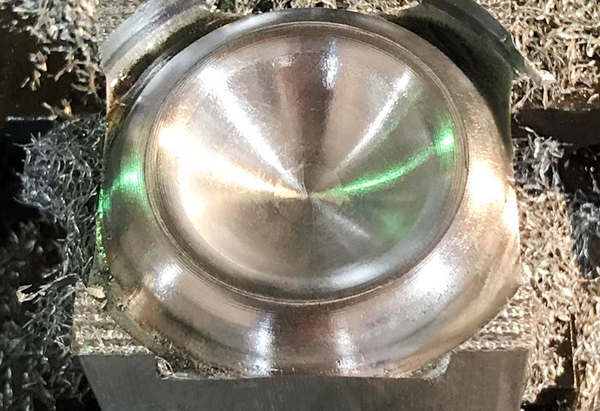

CNC Milling Test Cut Sample

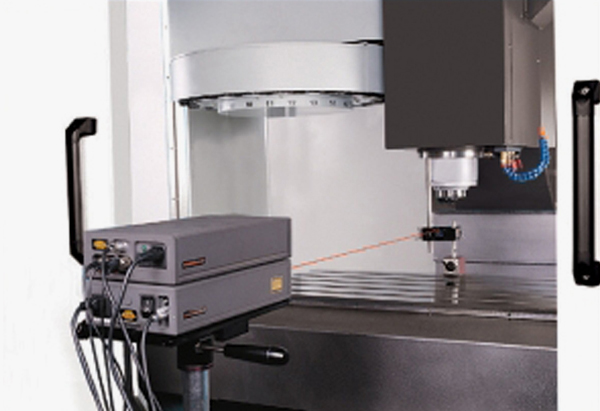

INSPECTION BY LASER EQUIPMENT

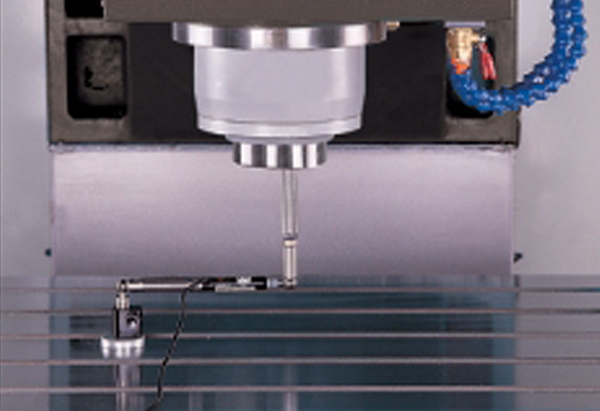

Advanced laser equipment is employed to inspect the linear accuracy, ensuring superior positioning and repeatability accuracy.
BALL BAR
To ensure best accuracy & alignment in circular path, machines are ball bar tested.

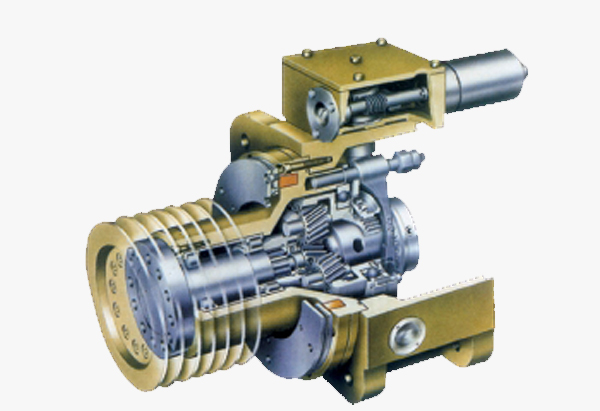

GRMANY ZF GEAR SPINDLE (optional)
Box-shaped construction design on spindle head with high rigidity to improve the cutting ability.

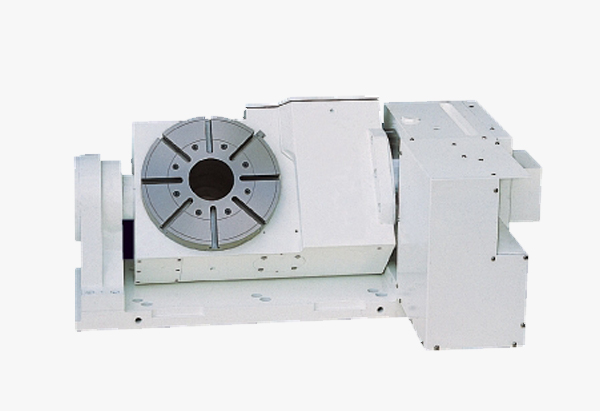

4th AXIS OR 5th AXIS ROTARY TABLE & TILTING HEAD ARE ARAILABLE (optional)

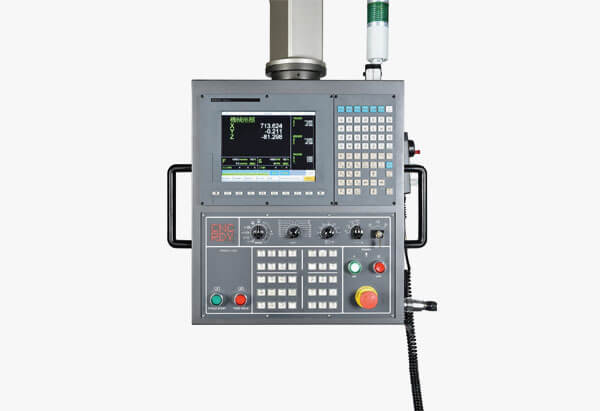

SYNTEC CONTROLLER
*The above controllers are available.

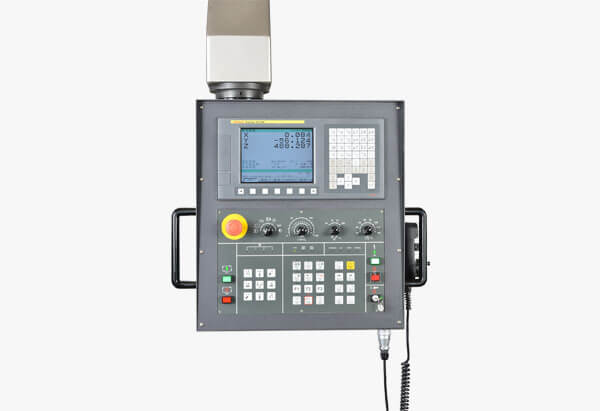

FANUC CONTROLLER

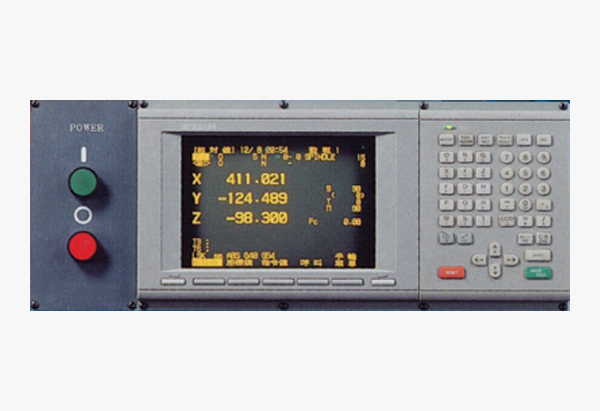

MITSUBISHI CONTROLLER

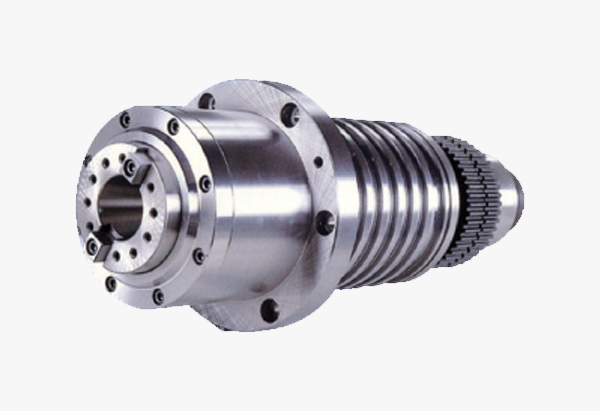

HIGH PRECISION, HIGH RIGIDITY SPINDLE
SCREW TYPE CHIP CONVEYOR (Optional)

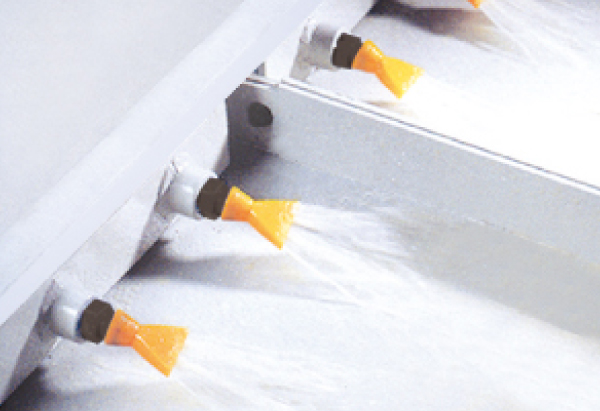

POWERFUL CHIP FLUSH NOZZLES (Optional)

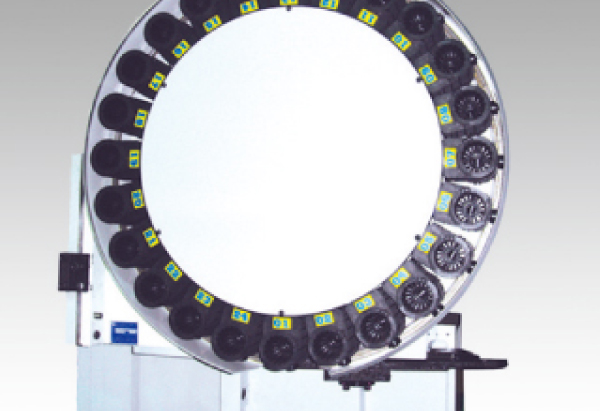

ARMLESS TYPE ATC (Optional)
The 16/20 tools armless type ATC wigh simplified magazine construction. Safe, troble-free, and easy to maintain.

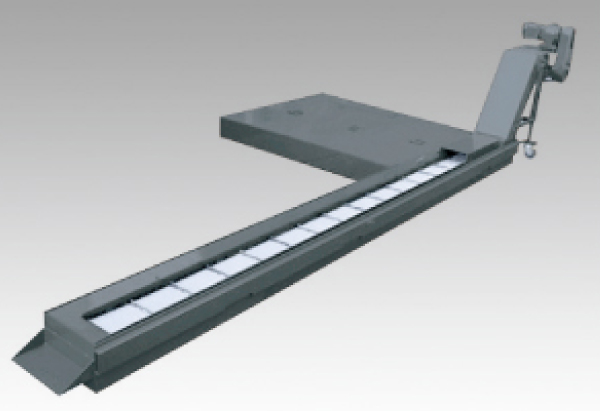

BELT TYPE CHIP CONVEYOR (Optional)

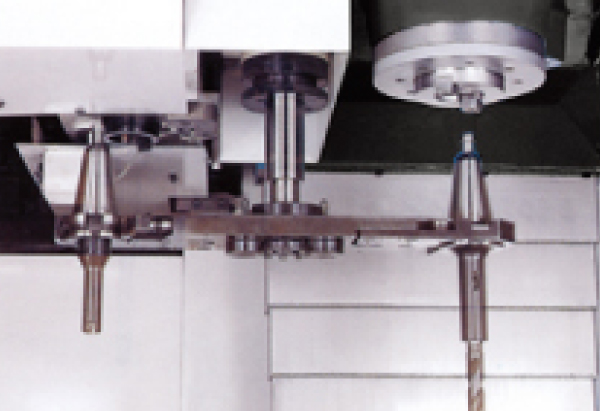

ARM TYPE ATC (Optional)

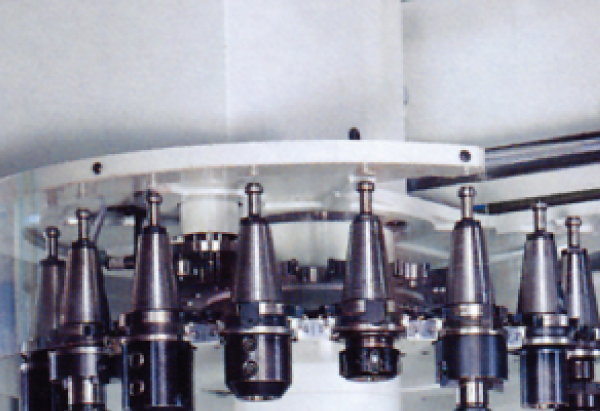

The 24 tools arm type ATC, the magazine with the shortest selection route and the fastest tool changing speed.
HIGH-SPEED TOOL CHANGING
COOLANT THROUGH SPINDLE (Optional)

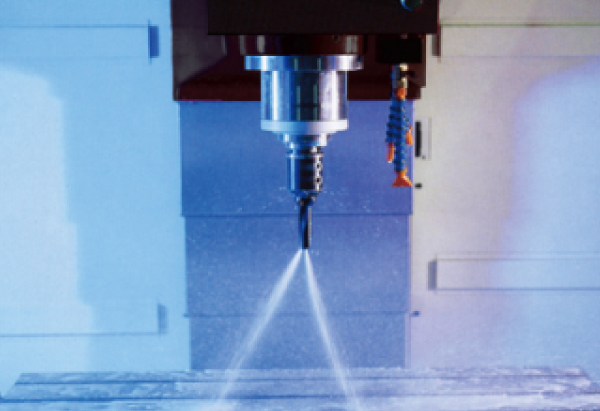

Coolant, circulated through spindle, offers a direct cooling effect on tools. Reducing heat that rises during machining.

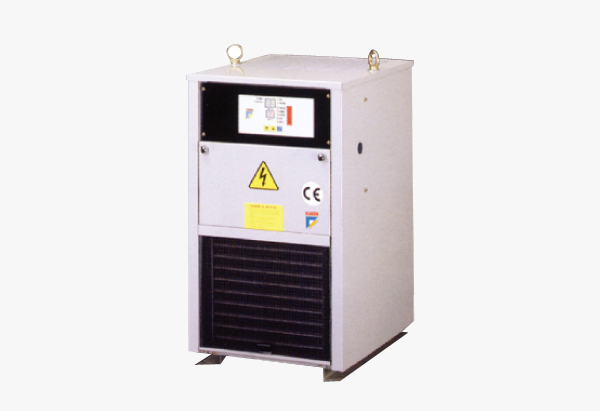

SPINDLE OIL COOLER (Optional)
| ITEM | UNITS | YT-800S/FM | YT-1000S/FM | YT-1300S/FM | YT-1500S/FM | YT-2000S/FM | YT-2500S/FM |
|---|---|---|---|---|---|---|---|
| Table | |||||||
| Worktable | mm inch |
1220 x 400 48" x 15.8" |
1370 x 400 54" x 15.8" |
1600 x 500 63" x 19.7" |
1854 x 610 73" x 24" |
2336 x 762 92" x 30" |
2845 x 762 112" x 30" |
| T-slot | mm | 16 x 5 | 16 x 5 | 18 x 5 | 18 x 5 | 18 x 5 | 18 x 5 |
| Table Load Capacity | kgs lbs |
800 (1760) |
800 (1760) |
1500 (3300) |
1500 (3300) |
1800 (3960) |
1800 (3960) |
| Movement | |||||||
| X Axis Travel | mm inch |
800 31.5" |
1000 39.4" |
1300 51.2" |
1524 60" |
2000 78.7" |
2500 98.4" |
| Y Axis Travel | mm inch |
500 19.7" |
500 19.7" |
635 25" |
762 30" |
889 35" |
889 35" |
| Z Axis Travel | mm inch |
570 22.4" |
570 22.4" |
620 24.4" |
710 28.0" |
710 28.0" |
710 28.0" |
| Spindle Head | |||||||
| Spindle Taper | BT-40(CAT-40) | BT-40(CAT-40) | BT-40(CAT-40) | BT-40(CAT-40) | BT-40(CAT-40) Op:BT-50(CAT-50) |
BT-40(CAT-40) Op:BT-50(CAT-50) |
|
| Spindle Speed | rpm | 6000 Opt:(8000,10000) |
6000 Opt:(8000,10000) |
6000 Opt:(8000,10000) |
6000 Opt:(8000,10000) |
6000 Opt:(8000,10000) |
6000 Opt:(8000,10000) |
| Ballscrew Diameter | m/m | Ø32 | Ø32 | Ø40 | Ø40 | Ø50 | Ø50 |
| Performance | |||||||
| Feed Rate | mm/min | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Rapid Traverse | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 |
| Motors | |||||||
| Spindle Motor | HP | 7.5 | 7.5 | 10 | 10 | 15 | 15 |
| N.W. | kgs lbs |
2,850 (6270) |
3,300 (6600) |
4,200 (9240) |
4,800 (10560) |
7,500 (16500) |
8,000 (17600) |
| G.W. | kgs lbs |
3350 (7370) |
3500 (7700) |
4700 (10340) |
5300 (11660) |
8000 (17600) |
8500 (18700) |
- COOLANT UNIT
- AUTO LUBE SYSTEM
- SPINDLE AIR BLAST
- WORK LIGHT
- ALARM LIGHT
- HEAT EXCHANGER
- TOOL BOX
- WORK LAMP
- SPINDLE OIL COOLER
- POWER SOURCE TRANSFORMER
- ARMLESS TYPE ATC (20T)
- ARM TYPE ATC (20 / 24T)
- COOLANT THRU SPINDLE
- 4TH AXIS & 5TH AXIS ROTARY TABLE & TILTING HEAD
- 8,000/10,000 RPM SPINDLE
- ZF GEAR SPINDLE
- SCREW TYPE CHIP CONVEYOR
- BELT TYPE CHIP CONVEYOR
- CE STANDARDS
